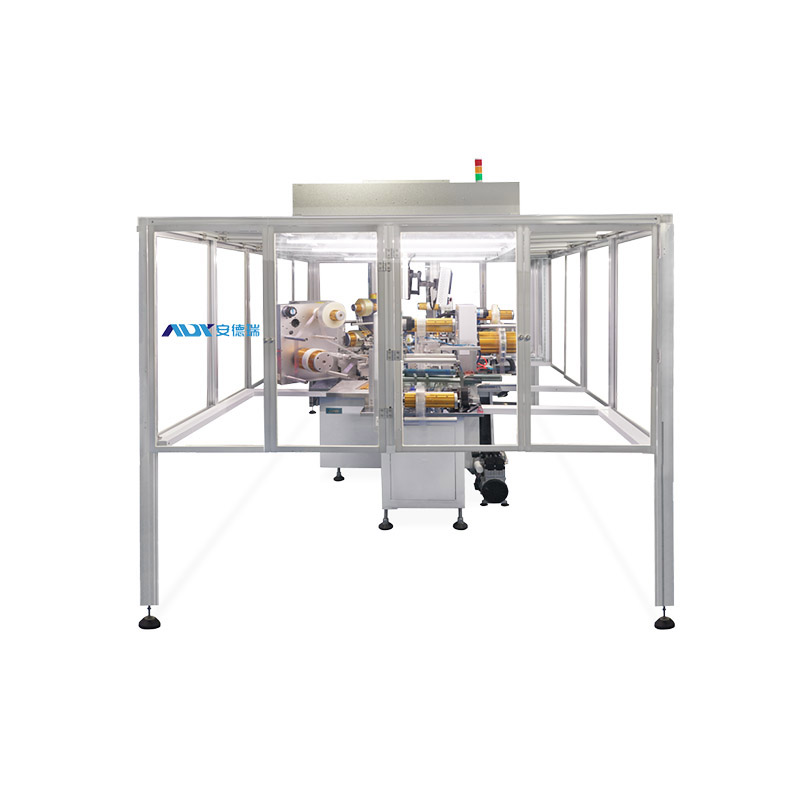

ADR-T500 Full automatic film pasting machine
Equipment introduction

全自动背光胶框一体机主要功能为:放胶框→贴放射 →贴导光板/灯条 → 贴扩散 → 贴增光一 → 贴增光二 → 贴黑白胶全过程二人操作。


the main functions of the automatic backlit plastic frame all-in-one machine are: plastic frame → sticking radiation → sticking light guide plate/ Light Bar → sticking diffusion → sticking to add light1 → ticking to light 2 → Two-person operation during the whole process of applying black and white glue.

Performance parameter
项目 规格参数
设备产能/Equipment capacity 约800~1200pcs/h
产品规格/Product specification 0.96~6寸
定位方式/Positioning mode 机械对位

贴膜精度/Accuracy of applied film

±0.1mm
电源及功率/Power supply and power AC220V 50Hz/60Hz 3.5KW
外形尺寸/Overall dimension L6000*W3400*H1900mm
重量/Weight 1000kg
